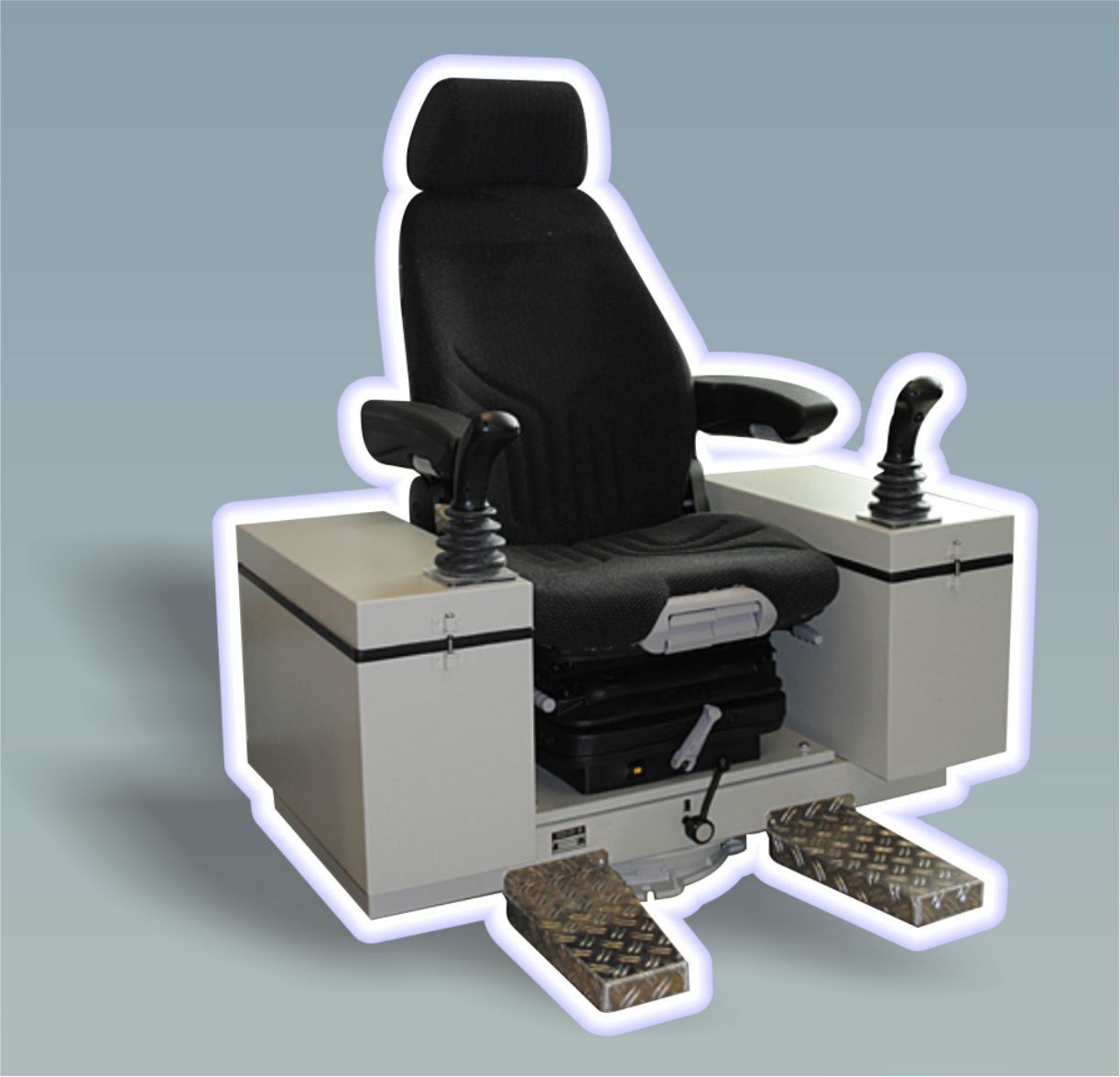

SV1C ergonomically designed Control Station

Ergonomically designed Control Station SV1C offers superior comfort for the operator.

It offers various adjustments: seat height, seat tilt, seat cushion depth, longitudinal seat adjustment relative to enclosures, lumbar support, adjustable backrest, weight adjustment and armrest adjustable in height and tilt supply optimal working position for every body size.

Comfort Seat with long well-formed backrest and reinforced side contour for optimal seating position as well as mechanical or pneumatic suspension with height adjustment.

The top lid with devices can be lifted and locked into position for easy wiring or maintenance.

The base is constructed of heavy duty steel with
a collapsible cover under the seat for easy access
to terminals.

Smooth rotary motion, stepless lock via friction brake or lock by notches in the range from 180° right to 90° left.

Powder Coated metal parts RAL7032 Pebble Gray for extended durability.

(905) 361-1515

Control stataion BG-top
main menu

e-mail: sales@wavetechcontrols.ca



errow - right-124
SV1C-large1
PDFs
errow - right-124
errow - right-124
errow - right-124
errow - right-124
errow - right-124
products
errow - right-124

options

1    Standard Enclosures 230 mm x 550 mm x 370 mm
2    Special size
3    Footrest Mounted to the swivel base
4    Headrest
5    Armrest – mounted on the enclosures
6    Horizontal or vertical mechanical adjustment
      of enclosures
7    Motorized Rotation
8    Pneumatic suspension with 12 or 24 VDC compressor
9    V- Cut seat
10  Wiring to Terminal Strip
11  Monitor holder
12  Special Paint


SV1C-230
SV1C-XXX
F
H
A
HA, VA

M
PS
V
W
MH
SP


SV1C
