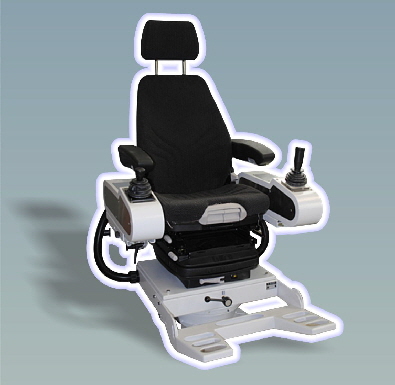

FSRD ergonomically designed Compact Control Station

Ergonomically designed compact Control Station FSRD
for various applications offers high comfort
for the operator.

It offers various adjustments: seat height, seat tilt, seat cushion depth, combined longitudinal horizontal and vertical adjustment of enclosures and longitudinal adjustment of the seat, lumbar support, backrest adjustment, weight adjustment and armrest adjustable
in height and tilt supply optimal working position for every body size.

Comfort Seat with long well-formed backrest and reinforced side contour for optimal seating position as well as mechanical suspension with height adjustment.

The standard consoles are swiveling outwards and are equipped with sloped covers for operator optimal view.

The base is constructed of heavy duty steel.
Terminals are integrated in base console.

Smooth rotary motion, stepless lock via friction brake in the range from 180° right to 90° left.

Powder Coated metal parts RAL7032 Pebble Gray for extended durability.

(905) 361-1515

Control stataion BG-top
main menu

e-mail: sales@wavetechcontrols.ca



errow - right-124
errow - right-124
errow - right-124
errow - right-124
errow - right-124
errow - right-124
products
errow - right-124

options

1    Standard Enclosures 120 mm x 594 mm x 144 mm
2    Special size
3    Footrest Mounted to the swivel base
4    Headrest
5    Armrest
6    Electrical Heating
7    Motorized Rotation
8    Pneumatic suspension with 12 or 24 VDC compressor
9    V- Cut seat
10  Wiring to Terminal Strip
11  Monitor holder
12  Special Paint


FSRD-120
FSRD-XXX
F
H
A
EH
M
PS
V
W
MH
SP


FSRD-Large
